Static FEM/FEA

Static Finite-Element-Simulation

Static Finite-Element-Analyses are to be performed, as long as steady and non-varying loads are applied on the component or on the assembly group. Project examples of static as well as steady state Finite-Element-Simulations performed for customers of MORPHOTEC are:

Clutch Spring

Durability Analyses of combustion engines (Passenger Car, Light and Heavy Trucks)
Development of rubber, plastic and composite parts using finite element stress and deformation analysis (e.g. flexible clutch disk, door seals, ventilator cowl, loudspeaker housings, plastic seats, fuselages) under consideration of different material models.
Pressure Testing of components / assembly groups due to flow dynamics.

Our CAE-Serviceportfolio comprises the following fields

Static Finite-Element-Simulations with
concentrated and/or allocated mechanical loads
loads from corresponding analyses (CFD, MBS, etc.)
averaged time-dependant loads
2D/3D contact formulations (Penalty, Lagrange etc.)
thermomechanical stresses

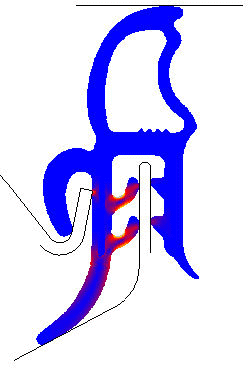

Sealing

corresponding material models
elastic-plastic material models
(Drucker-Prager, Johnson Cook etc.)
Neo-Hooke
Mooney-Rivlin
Ogden
in-house developed material models
